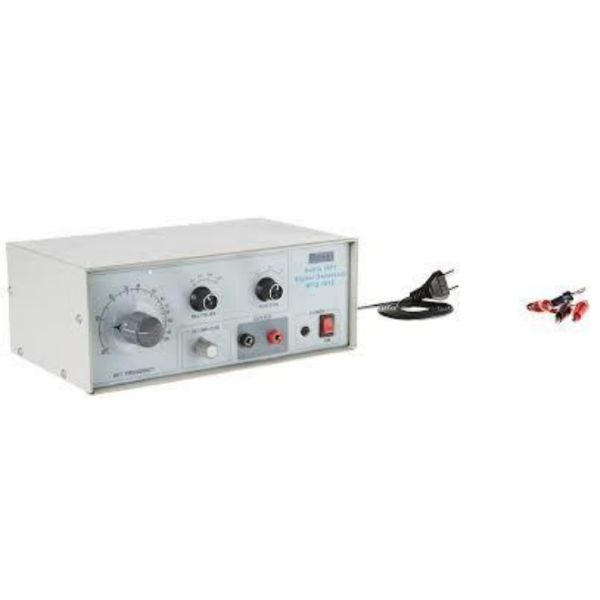

Name: High Accuracy Professional Audio Frequency Generator Classic
Brand: JUNXI
Price: 1 USD

Brand Name : JUNXI

Model Number : JXFG-22

Certification : iso

Place of Origin : china

Contact Now

Technical Specification

Oscillation frequency: 1 range:10Hz to 100Hz/10 range:100Hz to 1Khz/100 range:1KHz to 10KHz 1K range:

10KHz to 100KHz 10K range:100KHz to 1MHz

Frequency accuracy: ±3% +1Hz

Output impedance: 600Ω Output attenuator: 0dB, 10dB, 20dB, 30dB, 40dB, 60dB(6 ranges for selection)

Characteristics of sine wave

Output voltage: ≥5Vrms

Frequency response: 10Hz to 1Mhz:±0.5dB

Synchronizing range: ≤1% Vrms

Max input voltage: 15V (DC+AC peak value

Temperature/humidity: 10°C to 35°C/within 85% RH

Power supply: 220V/110V ±10%;50/60Hz

Dimensions: 128(W)x190(H)x239(D)mm

Weight: 3KG

Product Tags:

Classic Audio Frequency Generator
